Stainless Steel Endoscope Sterilization Basket & trays for Surgical Operation
Description

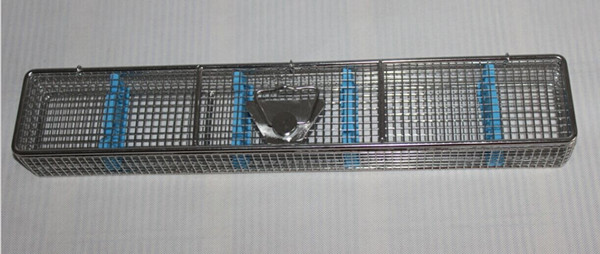

This basket & trays is maily for laparoscopic instruments and trocars
The system offers safe storage of laparoscopic instruments and trocars during transportation, reprocessing and storage. Systematic protection guarantees safety and a long lifetime. Problem-free storage of instruments and trocars with different diameters and length due to the universal designed silicon components.
Features:
- Universal silicon storage rack for instruments 2-12.5 mm in diameter
- Provides storage for up to 18 instruments
- Variable instrument storage
- Fold down handles for easier instrument removal
- Optional trocar storage
Material: Stainless steel 304
Wire Diameter: 0.5mm-2mm
Aperture: 3mm-6mm
Surface treatment l : electrolyzation and polishing
Specification: can customized any size , following is just some sizes for referance

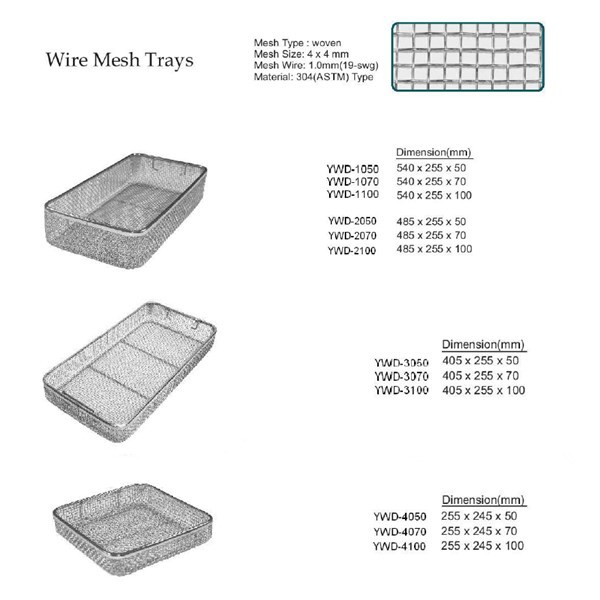

| Woven & welded wire mesh tray (DIN) |
| Code | Length | Width | Height | Code | Length | Width | Height |
| WITD-1 | 120mm | 250mm | 50mm | WITD-8 | 480mm | 480mm | 60mm |
| WITD-2 | 240mm | 250mm | 50mm | WITD-9 | 540mm | 252mm | 60mm |
| WITD-3 | 480mm | 250mm | 50mm | WITD-10 | 240mm | 250mm | 70mm |
| WITD-4 | 480mm | 480mm | 50mm | WITD-11 | 480mm | 250mm | 70mm |
| WITD-5 | 510mm | 254mm | 50mm | WITD-12 | 520mm | 330mm | 75mm |
| WITD-6 | 240mm | 250mm | 60mm | WITD-13 | 480mm | 250mm | 100mm |
| WITD-7 | 480mm | 250mm | 60mm | | | | |

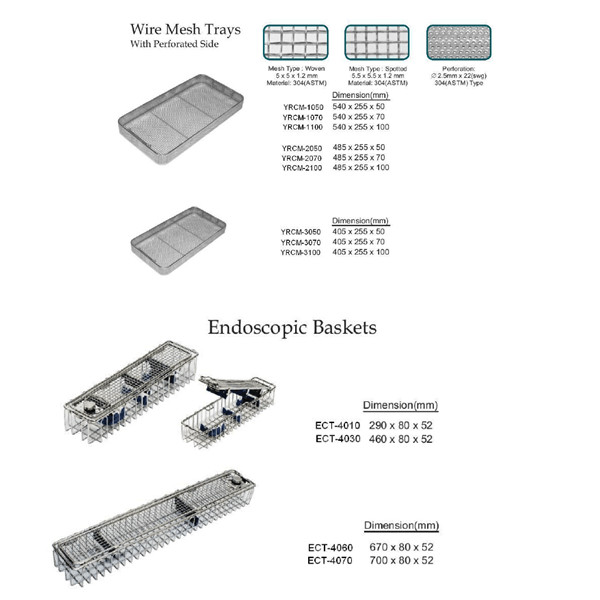

| Perforated side instrument tray (DIN) |
| Code | Length | Width | Height | Code | Length | Width | Height |
| PIT-1 | 226mm | 226mm | 60mm | PIT-14 | 498mm | 230mm | 75mm |
| PIT-2 | 240mm | 250mm | 60mm | PIT-15 | 540mm | 250mm | 75mm |
| PIT-3 | 370mm | 230mm | 60mm | PIT-16 | 226mm | 226mm | 100mm |
| PIT-4 | 410mm | 250mm | 60mm | PIT-17 | 240mm | 250mm | 100mm |
| PIT-5 | 480mm | 250mm | 60mm | PIT-18 | 370mm | 230mm | 100mm |
| PIT-6 | 498mm | 230mm | 60mm | PIT-19 | 410mm | 250mm | 100mm |
| PIT-7 | 510mm | 250mm | 60mm | PIT-20 | 480mm | 250mm | 100mm |
| PIT-8 | 540mm | 250mm | 60mm | PIT-21 | 498mm | 230mm | 100mm |
| PIT-9 | 226mm | 226mm | 75mm | PIT-22 | 540mm | 250mm | 100mm |
| PIT-10 | 240mm | 250mm | 75mm | PIT-23 | 226mm | 226mm | 150mm |
| PIT-11 | 370mm | 230mm | 75mm | PIT-24 | 370mm | 230mm | 150mm |
| PIT-12 | 410mm | 250mm | 75mm | PIT-25 | 498mm | 230mm | 150mm |
| PIT-13 | 480mm | 250mm | 75mm | | | | |
| Welded wire mesh tray (SPRI / ISO) |
| Code | Length | Width | Height | Code | Length | Width | Height |
| WITS-1 | 120mm | 250mm | 60mm | WITS-7 | 480mm | 300mm | 60mm |
| WITS-2 | 240mm | 250mm | 60mm | WITS-8 | 250mm | 170mm | 70mm |
| WITS-3 | 320mm | 230mm | 60mm | WITS-9 | 340mm | 250mm | 70mm |
| WITS-4 | 360mm | 250mm | 60mm | WITS-10 | 450mm | 340mm | 70mm |
| WITS-5 | 460mm | 320mm | 60mm | WITS-11 | 480mm | 250mm | 100mm |
| WITS-6 | 480mm | 250mm | 60mm | | | | |
Advantages :
- Durable , won't rust and out of shape .
- Easy to clean . No welded joint , safety use .
- Hole Size guarantee the cleaning and sterilization effect
Application:
- For medical, laboratory sterilizer
-
For disinfection sterilization, such as ultrasonic cleaning, storage use, especially to surgical instruments, medical apparatus and instruments in the instrument trays with cleaning and disinfection sterilization.
- Suitable for the medical treatment unit, hospital departments, such as operating room, supply room, disinfection, dental clinics and wards all cleaning disinfection sterilization treatment related departments of medical institutions
Types :
------------------------------------------------------------------------------------------------------------------------------
