100 micron monel k500 woven wire mesh filter media for industrial filter

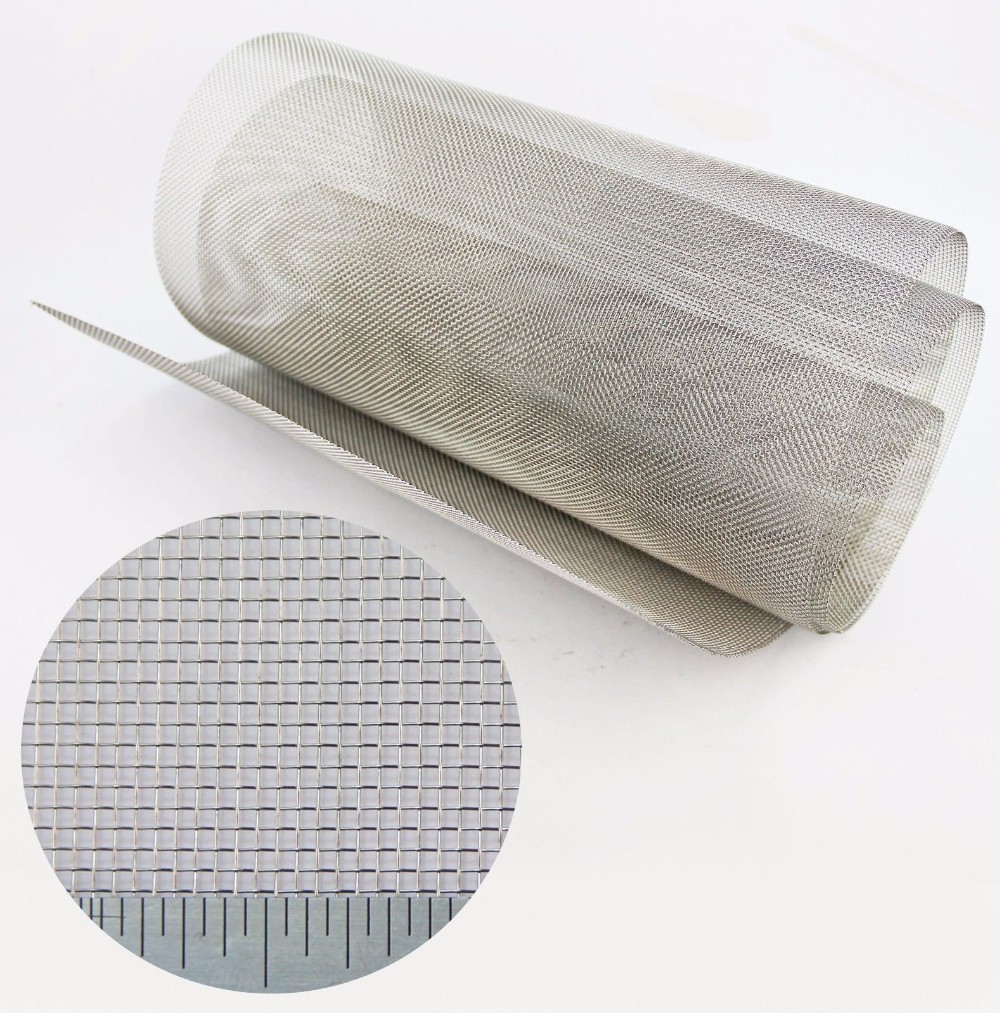

Monel Woven Wire Mesh, Monel Wire Mesh Manufacturer
Similar to the inconel woven wire mesh, the monel woven wire mesh is also a type of woven wire mesh, which is manufactured from nickel-based alloy material.
Monel is the alloy of nickel, copper and other chemical elements. According to different chemical elements, the monel woven wire mesh has Monel alloy 400 and monel alloy K500 materials.
The monel woven wire mesh includes fine woven wire mesh, which has the mesh size larger than 80 meshes, and coarse woven wire mesh with the meshes no larger than 80 meshes.
Application
- The monel woven wire mesh has outstanding corrosion resistance features, so it is widely used in the marine industries, such as the piping system and strainer baskets.
- The monel woven wire mesh can remain a perfect condition in the chemicals, so it is widely used in the petrochemical industries, like the chemical processing equipment and heat exchanger.
Specification of Monel Woven Wire Mesh
- Material: monel 400 and monel K500.
- Weaving type: plain weave and twill weave.
- Wire diameter: 0.0021" - 0.028".
- Mesh size: 8 mesh to 200 mesh.
| Item | Mesh (Wires/ in.) | Wire diameter (in.) | Width of opening (in.) | Open area (%) |
| 01 | 8 × 8 | 0.0280 | 0.0970 | 60.20 |
| 02 | 10 × 10 | 0.0250 | 0.0750 | 56.30 |
| 03 | 12 × 12 | 0.0230 | 0.0600 | 51.80 |
| 04 | 20 × 20 | 0.0160 | 0.0340 | 46.20 |
| 05 | 30 × 30 | 0.0130 | 0.0203 | 37.20 |
| 06 | 40 × 40 | 0.0100 | 0.0150 | 36.00 |
| 07 | 60 × 60 | 0.0072 | 0.0090 | 30.50 |
| 08 | 80 × 80 | 0.0055 | 0.0070 | 31.40 |
| 09 | 100 × 100 | 0.0045 | 0.0060 | 30.30 |
| 10 | 120 × 120 | 0.0036 | 0.0047 | 32.26 |
| 11 | 150 × 150 | 0.0026 | 0.0041 | 37.20 |
| 12 | 200 × 200 | 0.0021 | 0.0533 | 33.60 |
Monel 400 Wire Mesh significantly resists de-aerated hydrochloric acid and hydrofluoric acids. It provides broad resistance to stress corrosion cracking in the fresh water and other corrosion conditions. It shows intense mechanical features at the subzero temperatures and firmness and toughness. It doesn't exhibit ductile to brittle transformation when quenched to fluid hydrogen temperature level.
Monel K500 Wire Mesh offers excellent resistance to corrosion as well as large strength and hardness. The strength of this alloy is retained up to 1200oF however it shows ductility and toughness up to 400oF. It has very high melting temperature of 2400oF to 2460oF. The Monel K500 alloy has almost three times higher yield strength and tensile strength as compare to Monel 400 mesh.
